IC706_BKT configuration page, and getting started

Thu, 15 Feb 2024 20:38:08 +0000

Good afternoon from snowy New Hampshire, USA.

Just getting started with IC706_BKT and so far have not been able to get it to work.

I need an Icom CT-17 or equivalent cable, right? I have the LCU3-I and OPC-478 cables and they don't work, so I assume I need to get a CT-17 equivalent cable, right?

Second question... how do I get back to the IC-706_BKT configuration page? When I first started it up it took me to the config page but since then it just takes me to the main page and I can't change the configuration. I assume there is something I click to take me to the configuration but I don't see it.

The defaults are 19200-8-N-1, RTS and DTR both ON. Is that the correct configuration to talk to the IC-706MKIIG?

Thanks...

Rick WA1RKT
Londonderry, NH, USA
Catch me on 14.300 MHz Intercon / MMSN most days

errore BKTExtention.dll

Wed, 03 May 2023 20:23:32 +0000

ho provato le predisposizioni per l'uso con WSJTx ma ho avuto degli errori;
ho dovuto reinstallare il sw IC706_BKT Cat ma mi da un errore:
"errore nell'apertura del file per la scrittura C:\Windows\System32\BKTExtention.dll"
non compare l'icona PTT
(anche se la comunicazione con l'apparato è ok)

ic-706 on/off

Fri, 10 Feb 2023 17:16:09 +0000

Good evening. I just registered to this program for ic-706. I like some times to work remote from another pc on the same network. The software is connected to ic-706. What i need to do is to connect to remote pc to run the software and put on or off the radio but i cannot see any button in software.
Is anybody here tried to do this?
thank you.

Efficiente interfaccia CAT USB by I2WQ

Sat, 30 Jul 2022 13:20:10 +0000

Scandio I2WQ segnala questa semplice interfaccia USB che non ha problemi di drivers e dal costo veramente irrisorio:

Icom IC 706 S-Meter SDR german/engl./ital.

Tue, 08 Feb 2022 19:14:15 +0000

Hallo
ich habe eine Vollversion und ein IC 706 und würde gerne den S- Meter und die PTT- Taste im Programm benutzen .
Das Programm gefällt mir gut. I
Desweitern würde ich gerne einen Wasserfall auf meinem Computer darstellen. gibt es hierfür eine Lösung.

Grüsse Michael

Hi

I have a full version and an IC 706 and would like to use the S-meter and the PTT button in the program.

I like the program a lot.

Furthermore, I would like to display a waterfall on my computer. Is there a solution for this.

greet Michael

Ciao

Ho una versione completa e un IC 706 e vorrei utilizzare l'S-Meter e il pulsante PTT nel programma.

Mi piace molto il programma.

Voglio anche visualizzare una cascata sul mio computer. C'è una soluzione per questo.

saluta Michele

Hallo
EN

Activation Code

Sun, 27 Dec 2020 15:28:17 +0000

Buongiorno,
ho smarrito il codice di attivazione in quanto passato più di un anno e cambiato due pc .
Come posso recuperarlo ??
Grazie e buona giornata

IU2IVN DIego

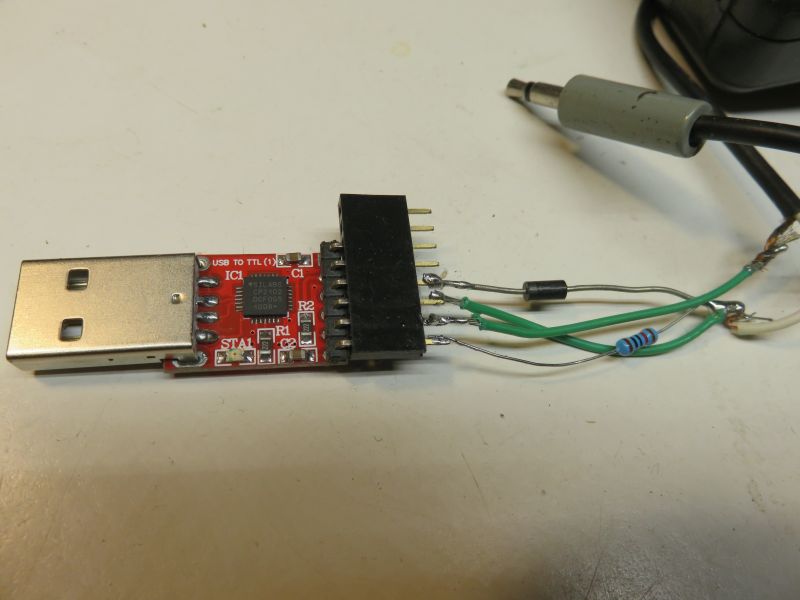

Easy to make CI-V cable

Thu, 19 Dec 2019 06:53:21 +0000

You can add this to the list of home made Icom CI-V cables .
I just made this one and it worked. I used a different kind of $2 usb to ttl board because I had one ( silicon labs CP210x is what it says )
Here is schematic - only need a resistor and diode.
Larry WT9M

icom civ cable.jpg (Size: 20.75 KB / Downloads: 20364)


Memory backup - Before I buy

Tue, 15 Oct 2019 13:49:27 +0000

Before I buy the software I need to sure it will backup the memories from my 706MKIIG

Is this the case?

Using IC706_BKT with JTDX, WSJT-X and MSHV

Sun, 16 Dec 2018 14:26:07 +0000

Guide to using IC706_BKT with WSJT-X, JTDX, MSJV:

IC706_BKT Version 4.21.0 and later:
- In IC706_BKT go to Utilities -> Configure
- Enable LAN Protocol on port 52002
- Confirm with OK
In WSJT-X or JTDX:
- Go to File -> Settings -> Radio
- In Rig select DX Lab Suite Commander
- Confirm with OK
In MSHV:
- Go to Options -> Interface Control
- In the Network box -> Server type 127.0.0.1 and in Port type 52002
- In RIG select DX Lab Suite Commander

IC706_BKT versions prior to 4.21.0:
- Download and install BktNetInterface
- Start BktNetInterface
- Select the CAT in use (IC706_BKT)
- If you want the connection to start automatically when you open the program, check "Auto-start in system tray"
- Click "Start"
- Start JTDX or WSJT-X
- Go to "File" -> "Settings" -> "Radio"
- In "Rig" select "DX Lab Suite Commander"
- Close with "OK"
To start BktNetInterface with the CAT:
- Start IC706_BKT
- Go to "Utility" -> "Startup"
- In "Description" write "BktNetInterface"
- In "Program" select "BktNetInterface.exe" from the installation folder
- Click "Save"

It is recommended to start IC706_BKT first and then JTDX, WSJT-X or MSHV.

Utilizzare IC706_BKT con JTD, WSJT-X e MSHV

Sun, 16 Dec 2018 14:13:53 +0000

Guida per utilizzare IC706_BKT con WSJT-X, JTDX, MSHV:

IC706_BKT Versione 4.21.0 e successive:
- In IC706_BKT andare in Utilità -> Configura
- Abilitare Protocollo LAN sulla porta 52002
- Confermare con OK
In WSJT-X o JTDX:
- Andare su File -> Setting -> Radio
- In Rig selezionare DX Lab Suite Commander
- Confermare con OK
In MSHV:
- Andare su Opzioni -> Controllo Interfaccia
- Nel riquadro Network -> Server digitare 127.0.0.1 e in Port digitare 52002
- In RIG selezionare DX Lab Suite Commander

IC706_BKT Versioni precedenti la 4.21.0
- Scaricare e installare BktNetInterface da https://www.maniaradio.it/download.html
- Avviare BktNetInterface
- Selezionare il CAT in uso (IC706_BKT)
- Se volete che il collegamento si avvii all'apertura spuntare Auto-start in system tray
- Avviare con "Start"
- Avviare JTDX o WSJT-X
- Andare su "File" -> "Setting" -> "Radio"
- In "Rig" selezionare "DX Lab Suite Commander"
- Chiudere con OK
Per avviare BktNetInterface assieme al CAT:
- Avviare IC706_BKT
- Andare in "Utilità" -> "Avvio"
- In "Descrizione" scrivere "BktNetInterface"
- In "Programma" selezionare "BktNetInterface.exe" dalla cartella di installazione dello stesso
- Cliccare su "Salva"

Consigliabile avviare prima IC706_BKT e poi JTDX, WSJT-X o MSHV.

program startup

Thu, 26 Apr 2018 23:41:17 +0000

I have IC706_BKT running fine on my Windows 7 machine. But I cannot get the program to even startup on my old Windows XP machine. I get the message.... "IC706_BKT has encountered a problem and needs to close". I have XP SP3 installed, no virus, connected radio, serial COM1 @ 19,200 (8,2 bits) and com1 has no errors, I am using version 19.0.0 Any idea what I can do to get the program to start?
Thanks

PTT keying

Fri, 24 Nov 2017 05:07:09 +0000

I have the 706MK2G software installed and mainly working under windows 7. Unfortunately the PTT key function does not seem to work. My configuration is: COM1, 9600,8,1,N,RTS and DTS = OFF PTT is enabled on COM1 :RTS PTT key is CTRL. The Tune function works but neither pressing the CTRL nor clicking on the mic icon (although the red light glows on) seems to work. I have changed PTT and COM1 configurations using DTR, serial port modes and different com speeds but nothing works.
Do you have any suggestions.
Thank you

Activation code

Wed, 22 Nov 2017 00:17:20 +0000

Hello, I am still awaiting my IC-706m2G activation code.
Thank you

Still waiting on key for Icom 706 mkiig

Fri, 23 Dec 2016 16:53:58 +0000

Still waiting on my key............... lt907@zoominternet.net

Language problem

Sat, 23 Jul 2016 00:00:52 +0000

I can provide screenshots, just ask.

When installing IC7000BKT A window pops up, in english, asking for the correct language. make sure English is selected. The rest of the install, setup and configuration proceeds in Italian and the final running screen is in Italian.

Except for the on-screen "Select Language" pop down. It's title is in English (unles "Select Language" is Italian for the same thing) and the vhoice selected is "English."

Any suggestions? My YL's strong suggestion is for me to learn Italian.
73, Mike
